GUITAR CAB DEMO
Hear it alongside an SM57 on guitar cabinet
Hakin Lee records a guitar cabinet with an SM57 and the NUDE Rectangular Ribbon through a Grace M101.

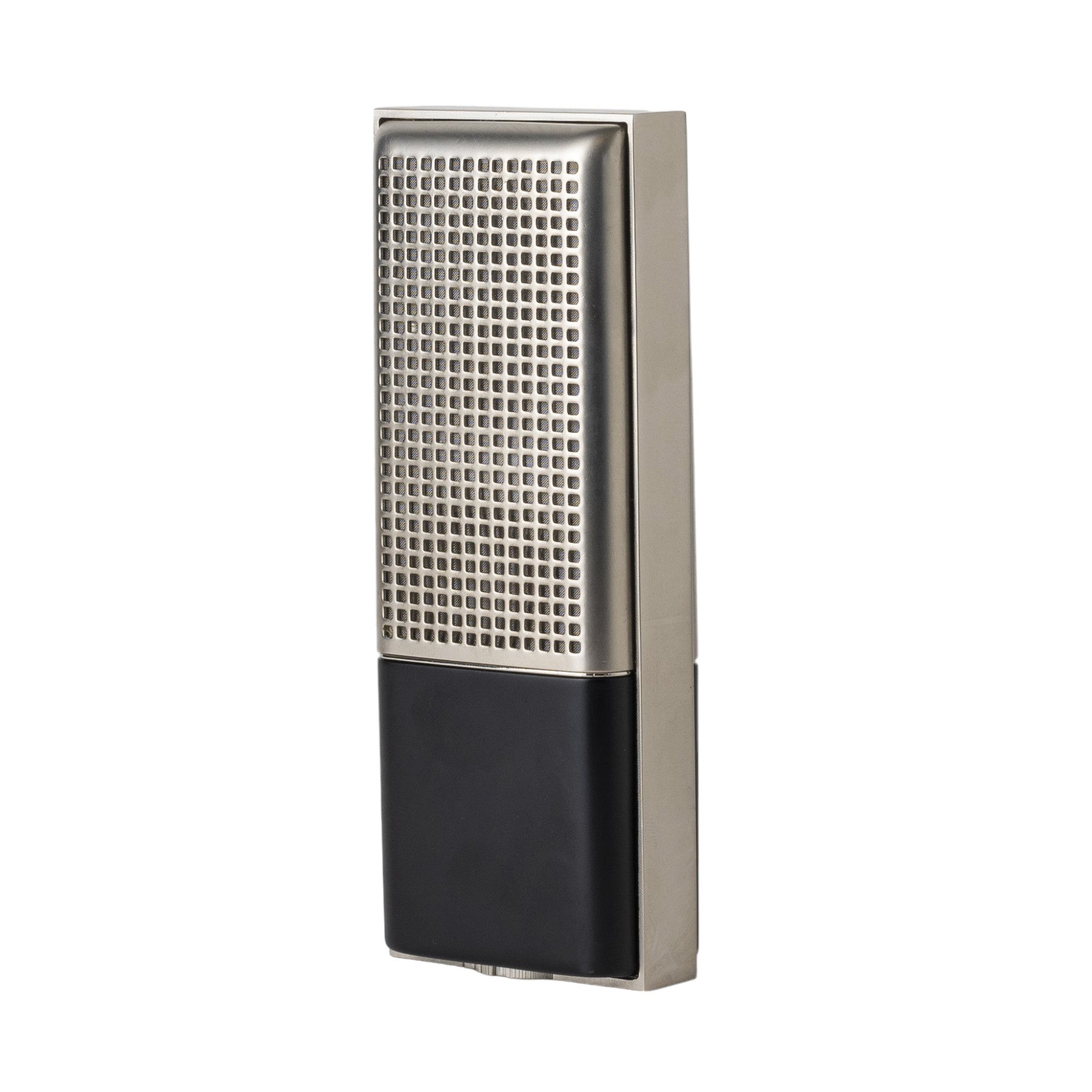

NUDE - Rectangular Ribbon Microphone
Full-bodied ribbon tone. Warm, Natural and Lusciously Musical.
The NUDE Rectangular Ribbon is a passive, transformer-isolated microphone built around dual 1.8-micron aluminium ribbons and an asymmetrical figure-8 pattern. It brings weight, smoothness and natural high-frequency restraint to guitar cabinets, drums, vocals, horns, strings and bright acoustic instruments — with published headroom above 145 dB SPL.
NUDE - Rectangular Ribbon Microphone
Sale price$357.00 USD
Regular price (/)
-
Free Worldwide Shipping
No code. No minimum spend.
-
Tracked + signature
A clear journey from our studio to yours.
-
Tested before dispatch
Every microphone is checked before it leaves South Australia.
THE RECTANGULAR RIBBON
Silky Smooth. Deeply Dimensional.
The NUDE Rectangular Ribbon has earned its place as a go-to microphone for sources that can become brittle, spiky or over-bright under a more forward design. Its presentation is warm, natural and lusciously musical, capturing the source with an uncanny “you are there” realism — the balance, depth and dimensionality of how the human ear experiences it in the room — while rounding hard edges without flattening the performance.
At its heart are dual 1.8-micron aluminium ribbons feeding a transformer-isolated balanced output. The asymmetrical figure-8 pattern hears from the front and rear while its side nulls give you practical control over spill, room reflections and bleed.
Place it close to a loud guitar cabinet, out front of a drum kit, across a vocal, or in front of horns, strings and metallic acoustic instruments. The result is body, rounded transients and a top end that stays musical rather than hard.
Published headroom above 145 dB means loud sources are welcome. It is passive: no onboard electronics and no phantom power required — just the ribbon motor, transformer and the character of your preamp.
A distinctive studio voice built to make difficult sources easier to listen to.
WE LOVE LISTENING
Headphones On — How It Sounds
Three real owner sessions: close-miked guitar cabinet, characterful front-of-kit drums and one-mic acoustic guitar.
FRONT-OF-KIT DRUMS
Hear the weight and character in front of a kit
Australian session drummer Robin Stone uses the Rectangular Ribbon out front for a deliberately dirty, lo-fi drum sound.
ONE-MIC ACOUSTIC
Hear the rounded body on acoustic guitar
Flat Jack’s Sound Shack puts one NUDE Rectangular Ribbon in front of an acoustic guitar for an intimate, well-rounded sound.
RECORDING APPLICATIONS
Perfect For
The NUDE Rectangular Ribbon earns its keep wherever a source can become hard, brittle or over-bright — adding body, rounded transients and a calm top end without losing the performance underneath.
Guitar cabinets
Put weight behind close-miked amps and smooth aggressive upper mids without taking the energy out of the performance.
Hear the guitar cabDrums
Use it out front or overhead for rounded cymbals, solid kit weight and character that moves easily from polished to dirty.
Hear the drumsVocals
Tame sibilance and hard edges while keeping voices full, intimate and recognisably human.
Acoustic guitar
Bring out body and wood while keeping pick attack natural and the upper mids controlled.
Hear the acousticHorns + saxophone
Keep brass and reeds powerful and articulate without letting bite turn abrasive.
Piano + strings
Round sharp transients while preserving body, bow detail, note definition and the scale of the instrument.
Metallic strings + resonators
Tame banjo, mandolin, resonator, steel-string and bottleneck blues slide transients while preserving articulation, body and rhythmic snap.
Cymbals + bright percussion
Round splashy or brittle cymbals, shakers and tambourines so their energy stays musical without turning hard or abrasive.
THE NUMBERS
A Passive Ribbon Built for Real-World Sources
Dual 1.8-micron aluminium ribbons, transformer-isolated output and more than 145 dB of published headroom — a simple signal path with a distinctive studio voice.
Asymmetrical polar pattern
Front and rear pickup with useful side nulls for controlling spill and room.
Dual aluminium ribbons
A light ribbon element that responds quickly while naturally softening hard edges.
Maximum SPL
Published headroom for guitar cabinets, brass, drums and other loud sources.
Frequency response
Full low-frequency reach with the smooth high-frequency character expected from a ribbon.
GO DEEPER
Specifications & Frequency Response
View the full technical specifications
- Polar pattern
- Asymmetrical figure-8
- Generating element
- Dual-ribbon aluminium, 1.8-micron
- Frequency response
- 30 Hz–16 kHz ±3 dB
- Sensitivity
- > -50 dBu ref. 1 V/Pa
- Output impedance
- 250 Ω @ 1 kHz nominal, transformer isolated
- Rated load impedance
- > 2000 Ω
- Maximum SPL
- >145 dB @ 0.5% THD @ 1000 Hz
- Signal-to-noise
- 70 dB ref. 1 Pa
- Output connector
- Male 3-pin XLR
- Power
- Passive ribbon microphone; phantom power is not required and should be switched off
View the Rectangular Ribbon frequency response
Published NUDE Rectangular Ribbon microphone frequency response plot.
EVERYTHING IN THE BOX
Ready for the First Session
NUDE Rectangular Ribbon microphone, fitted blond-wood presentation case and proprietary rectangular suspension mount.
NUDE Rectangular Ribbon microphone
The passive asymmetrical figure-8 microphone at the centre of the setup, built around dual 1.8-micron aluminium ribbons.

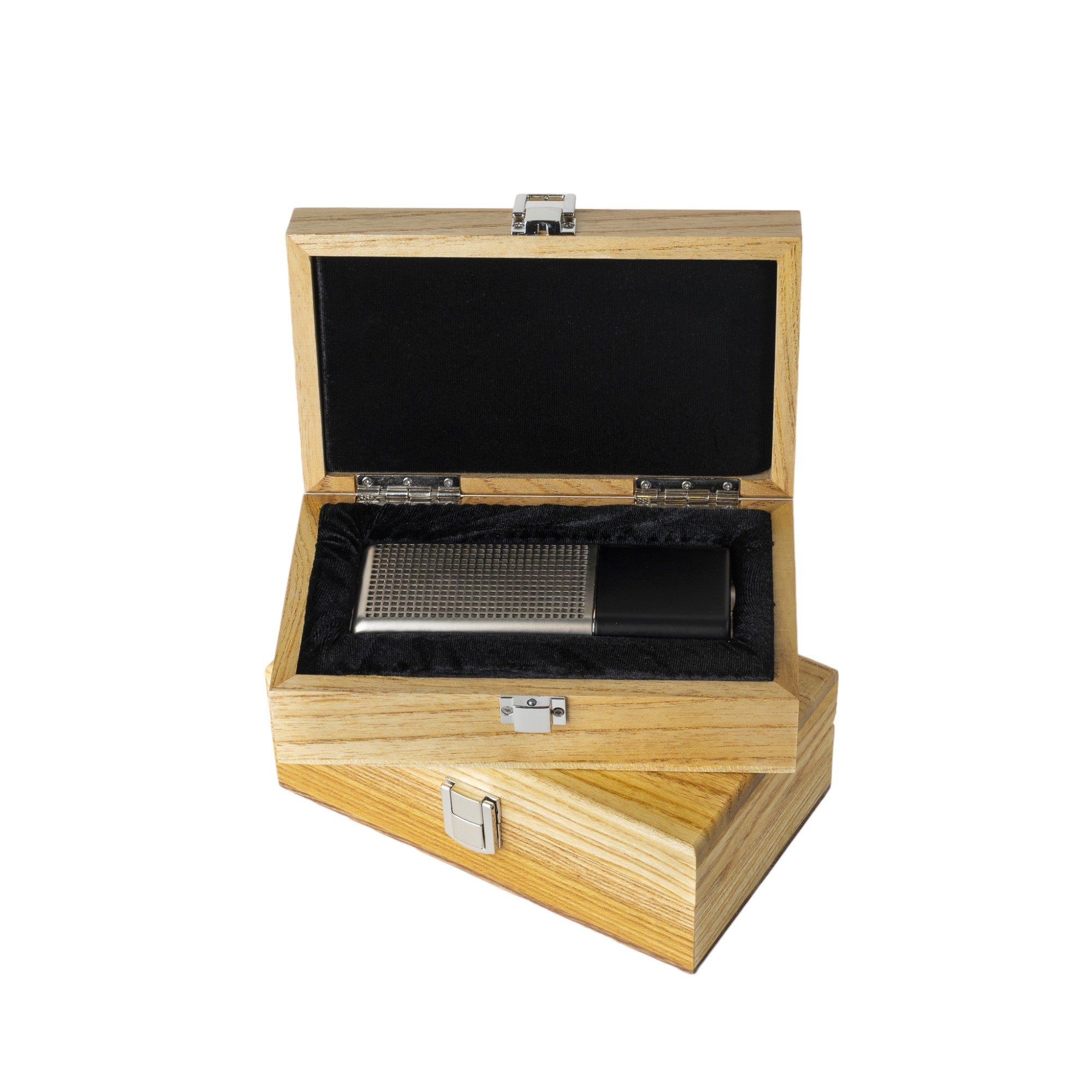

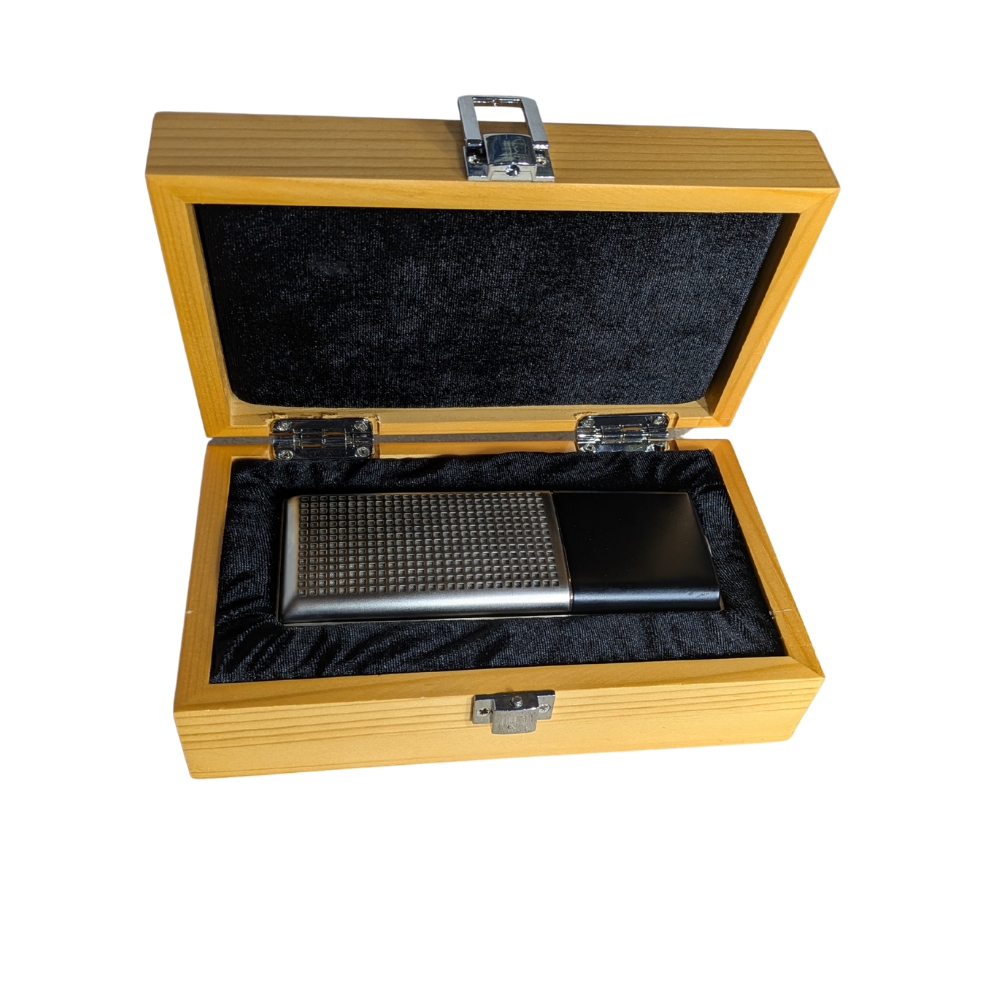

Blond-wood presentation case
A fitted wood case protects the microphone between sessions and keeps it ready for transport or storage.
Rectangular suspension mount
The proprietary suspension mount supports secure stand placement while helping isolate mechanical vibration.
FROM NUDE OWNERS
Already Doing the Work in Real Studios
Six direct owner endorsements across strings, voices, drums, guitar cabinets and acoustic instruments — with warmth, smoothness and useful character repeating throughout.
We used the Rectangular Ribbon mic as a violin and viola mic and also for a gentle a cappella vocal song. It was lovely on both — warm and smooth, and it tamed a quite sibilant vocal very well.
I got a pair. I use them for vocals and drums, but they’re ribbons, so you can use them on a loud amp or a ukulele.
I’d heard about the warm lows and natural high frequencies that the NUDE Ribbon had to offer… it provided an intimate and well-rounded acoustic guitar sound.
I’m using the NUDE Microphones Rectangular Ribbon mic at the front for this drum sound. Gives that dirty lo-fi sound!
I really dig the NUDE Microphones ribbon. It tames the fundamentals of my voice and has a nice natural roll-off in the top end.
Absolutely loving these new ribbon mics. Sounding awesome on guitars and vocals… Highly recommend these mics.
GOOD TO KNOW
NUDE Rectangular Ribbon FAQs
The practical questions that come up before you put a passive ribbon in front of a source.
Does the NUDE Rectangular Ribbon need phantom power?
No. It is a passive ribbon microphone, so phantom power is not required. Best practice is to switch phantom power off and use a properly wired balanced XLR cable.
Will I need a specific preamp?
No special preamp is required. Passive ribbons are naturally lower-output than condenser microphones, so a clean interface or preamp with around 60+ dB of gain is a useful starting point for quieter sources. Loud guitar cabinets, drums and brass need much less gain. An inline booster can help when you need extra clean gain.
How does the asymmetrical figure-8 pattern work?
The microphone hears from the front and rear while rejecting sound arriving from its sides. Because the response is asymmetrical, flip the microphone and listen to both faces; one may suit the source or room better. Use the side nulls to reduce spill, reflections or unwanted bleed.
What sources suit the Rectangular Ribbon?
It is particularly useful on guitar cabinets, drum overhead or front-of-kit positions, vocals, horns, saxophone, strings, acoustic guitar and bright percussion. It especially shines on metallic or overtone-rich sources — splashy or brittle cymbals, banjo, mandolin, resonator guitar, steel-string acoustic and bottleneck blues slide — where it can tame hard transients while preserving body, articulation and musical detail.
Can one Rectangular Ribbon record stereo?

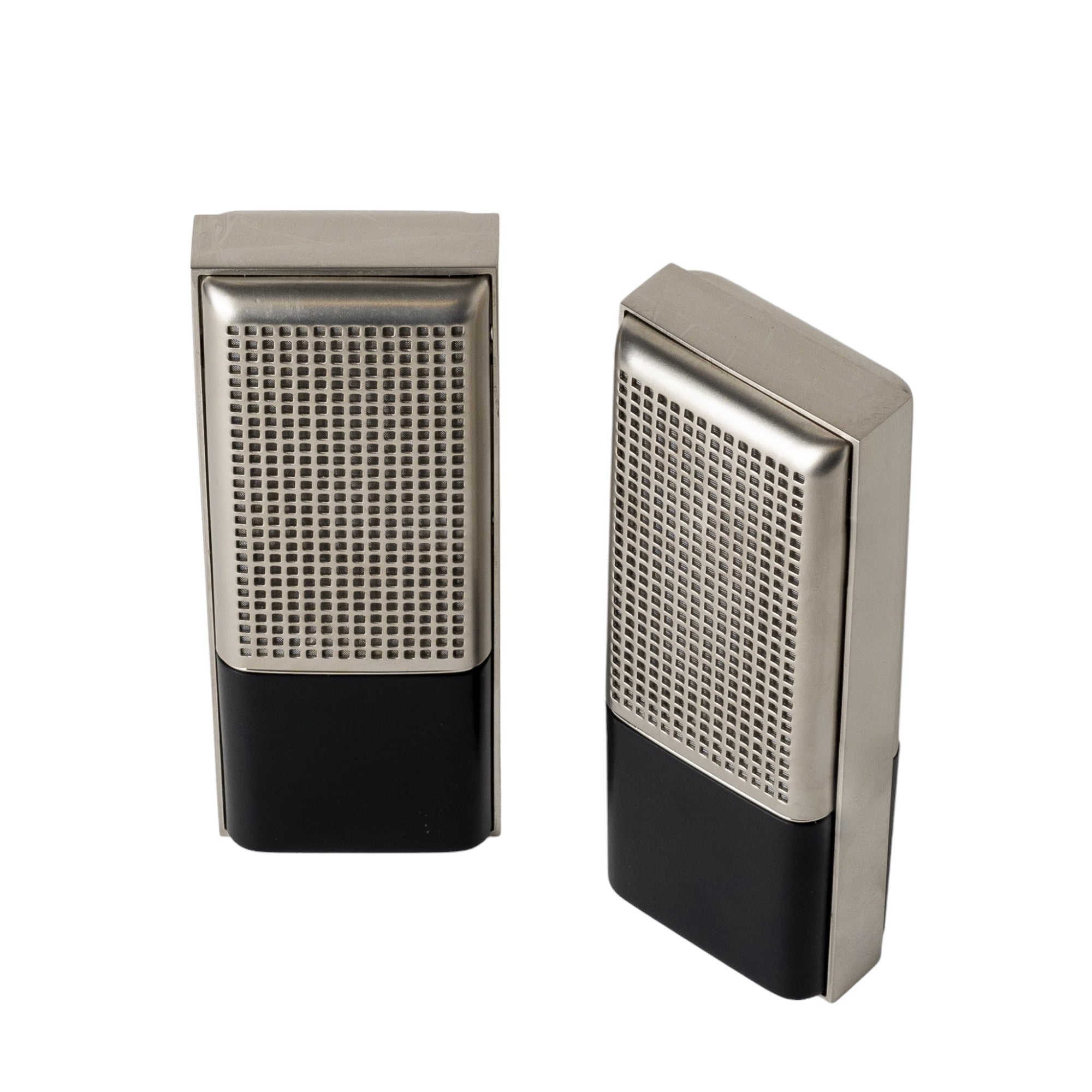

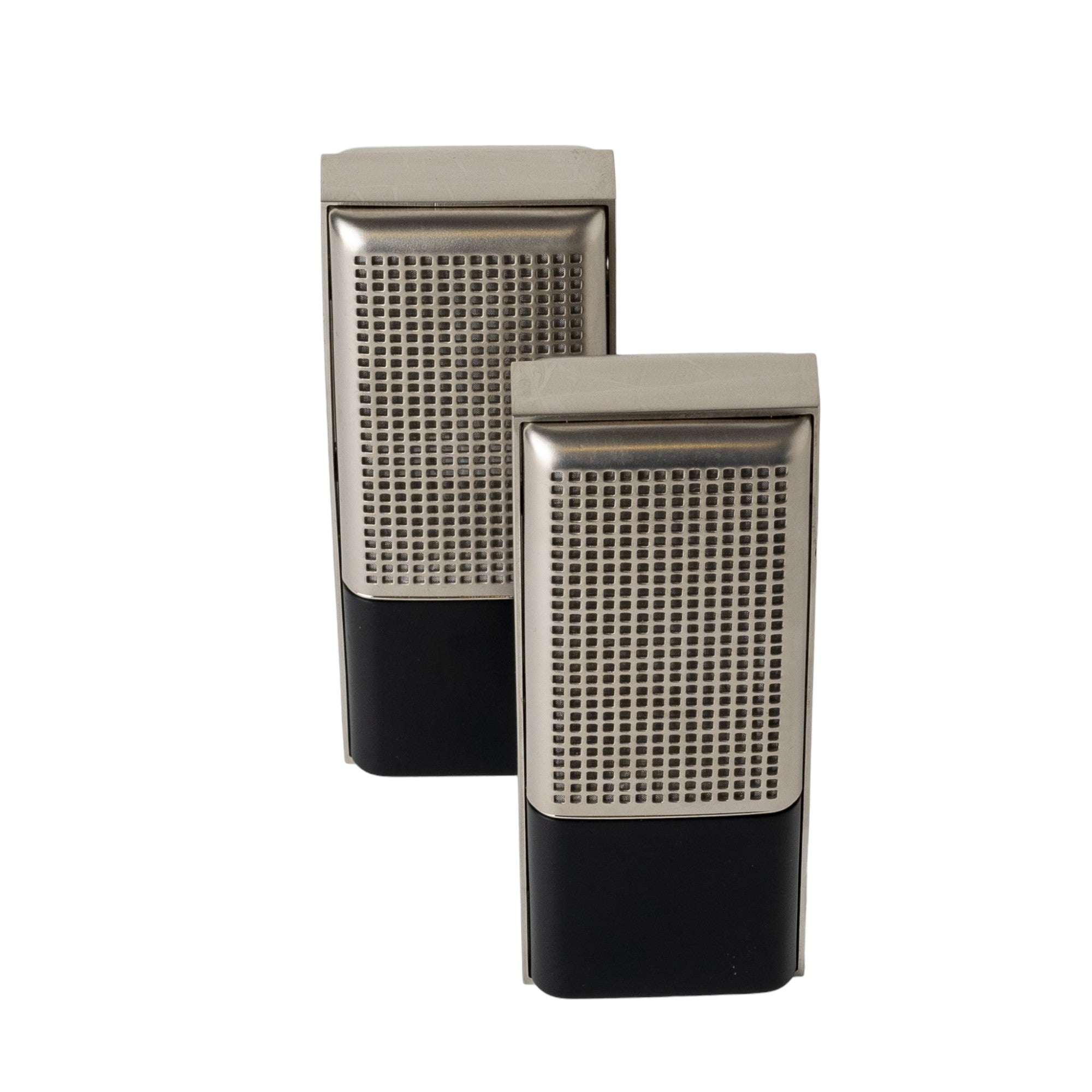

One Rectangular Ribbon produces a mono signal. For spaced pair, X/Y or Blumlein stereo techniques, choose a matched pair of Rectangular Ribbons or the NUDE Stereo Ribbon microphone.
What comes with the microphone?
The microphone ships in a fitted blond-wood presentation case with its proprietary rectangular suspension mount.
How should I store and care for it?
Keep it dry and protected from dust, moisture and strong air movement. Do not blow into the microphone or place it in front of direct air blasts. Avoid drops and use phantom power switched off. Upright storage cannot hurt, but normal protected storage is suitable for a well-built modern ribbon.
READY WHEN YOU ARE
Put the NUDE Rectangular Ribbon to Work
Guitar cabinets. Drums. Voices. Horns. Strings. Acoustic instruments. One passive ribbon with the body, smoothness and headroom to keep moving through the session.
$357.00
Currently unavailable
