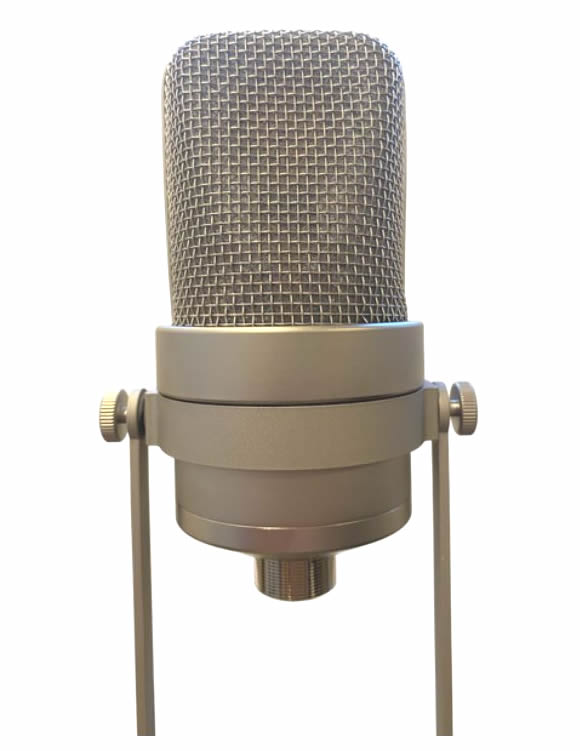

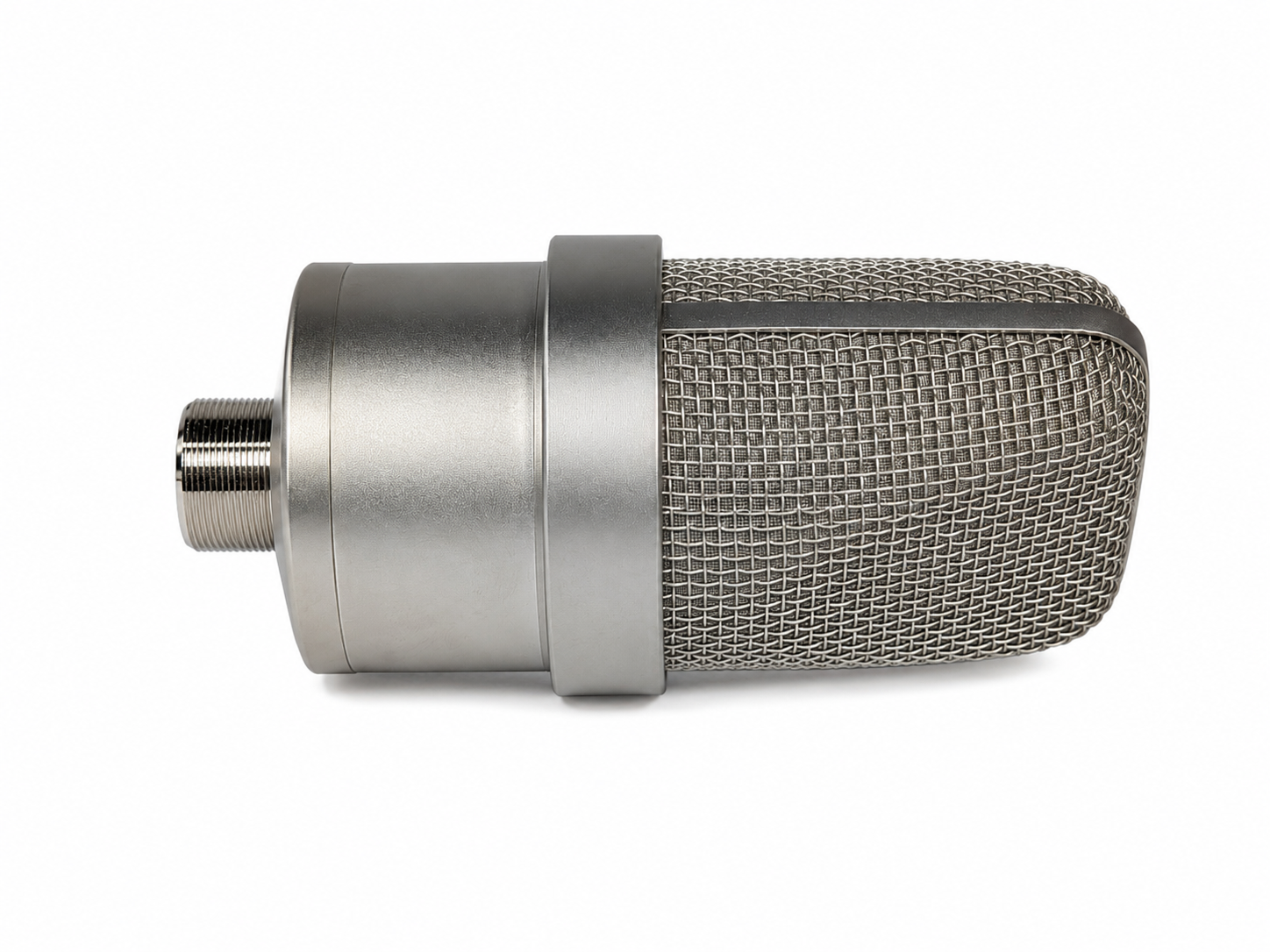

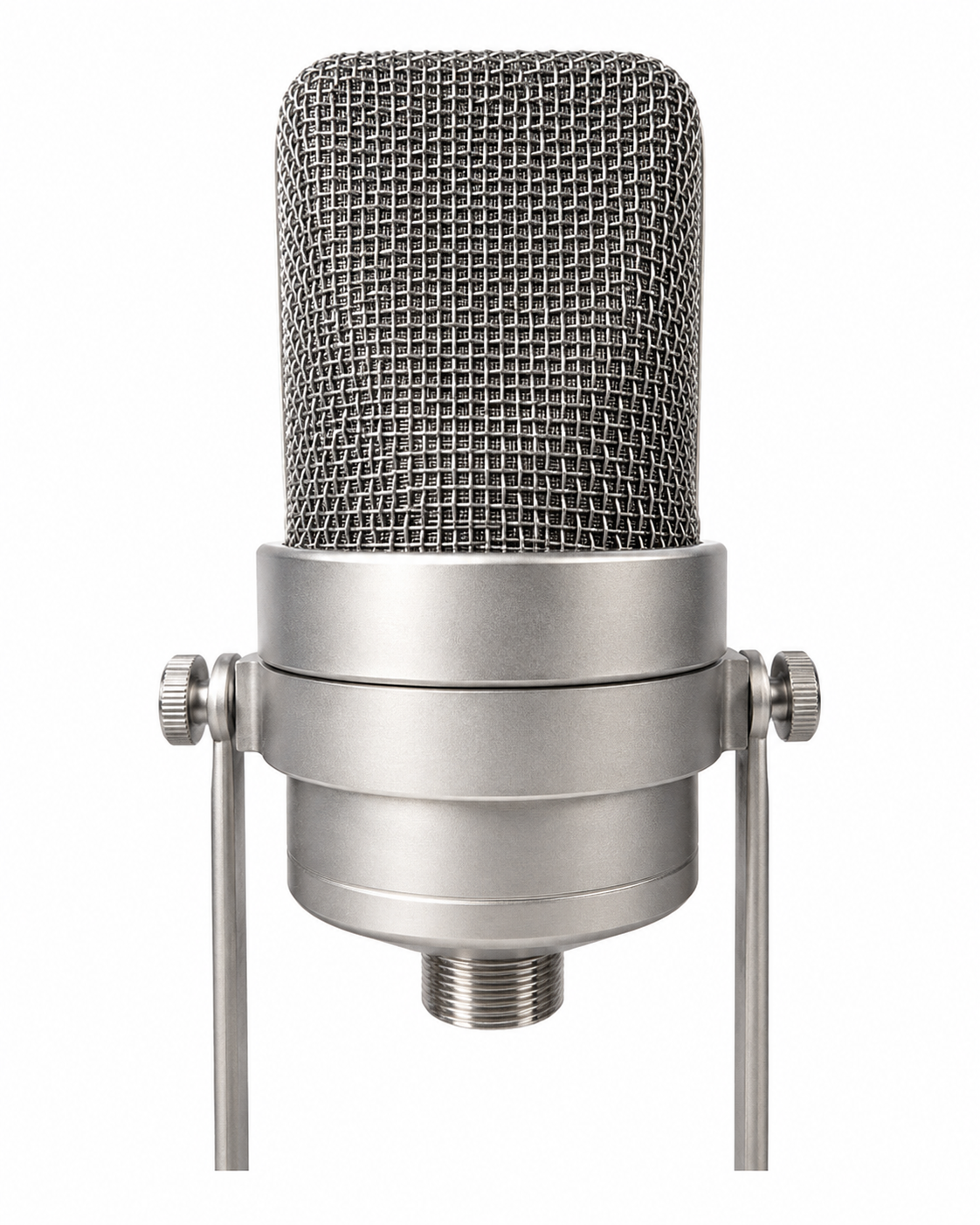

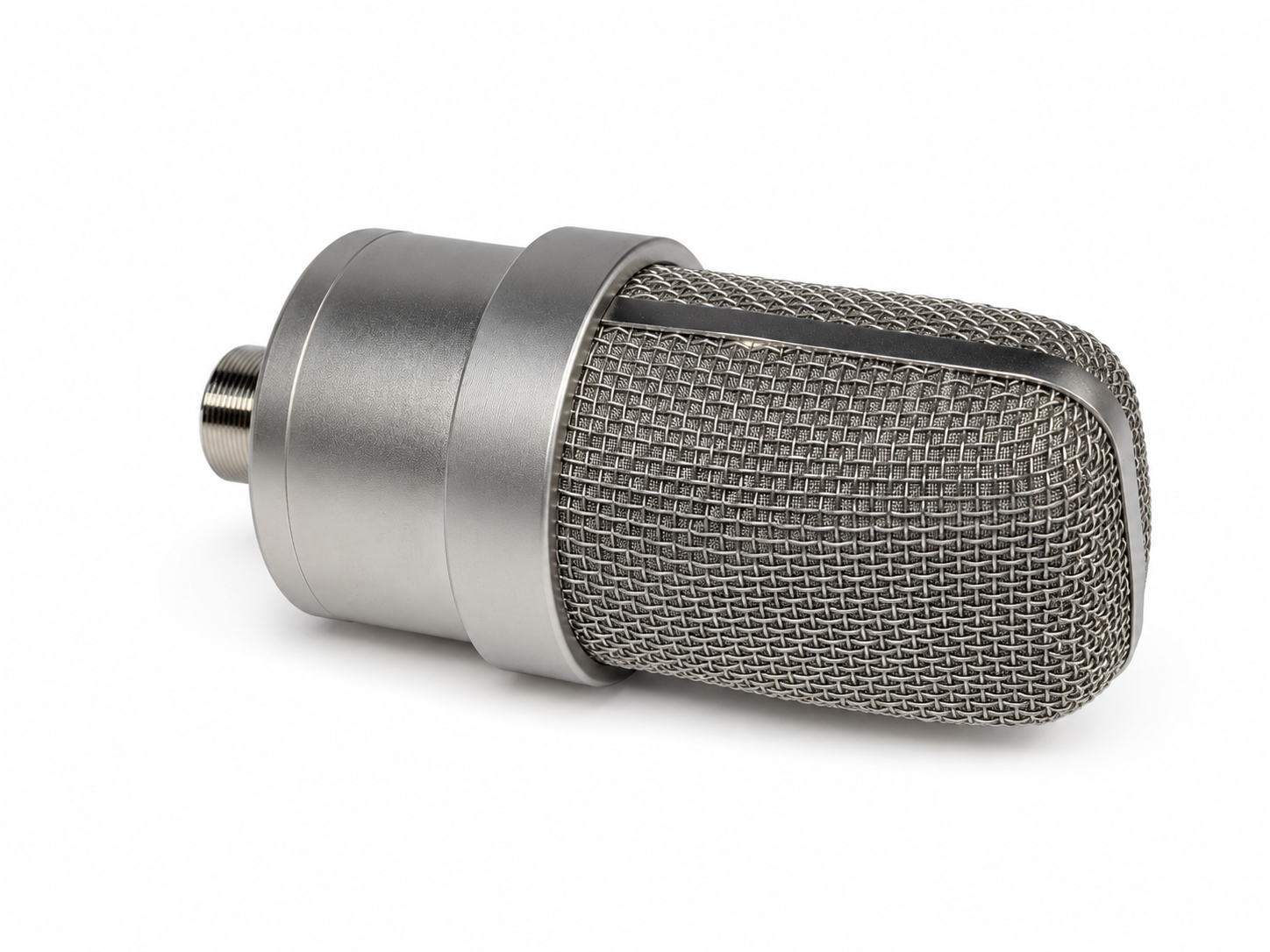

NUDE M49

This mic is our dedication to the revered M49 - a true “desert island” tube condenser that’s been a first-call vocal mic for generations, and just as at home on strings, piano, room duties and acoustic instruments when you want that unmistakable big, finished, expensive sound.

We’ve kept that spirit alive here with nine polar patterns, stepped from omni through cardioid to figure-8 (and the sweet spots in between) set on the power supply unit. This is a flagship build for us, so we’ve gone all-in on parts and execution. At the heart of the NUDE M49 is a high quality K47-type capsule: a single backplate, centre termination design with high-grade alloy clamping rings, and a dual-diaphragm 6-micron gold mylar assembly, the architecture behind that familiar “present but never pokey/gnarly” midrange and the effortlessly flattering top end. Drive is a GE 5654W military-grade sub-miniature tube, paired with carefully chosen premium capacitors (including mica and Vishay) and a 10:1 Dual-Bobbin BV11-style transformer delivering compelling presence, depth and dimension.

We believe we’ve struck the right balance of high-end components, engineering discipline, and a faithful sonic fingerprint - at the price point that NUDE has become synonymous with. We deliver: Low Cost, Superb Sonic Quality, and this is the most ambitious microphone we’ve released to date.

The Numbers:

• Polar Pattern: variable – set on power supply – omni stepped through to fig – 8
• Capsule: edge terminated 34mm dual diaphragm 6 micron mylar
• Frequency Response: 40Hz - 17kHz +/- 3dB
• Sensitivity: -32dBu Ref. 1v/pa
• Output impedance:  200 Ohms  @ 1K (nominal) transformer isolated
• Maximum SPL: >138dB @ .5% THD @1000Hz
• ENL <14dBA
• S/N 75dB ref. 1Pa

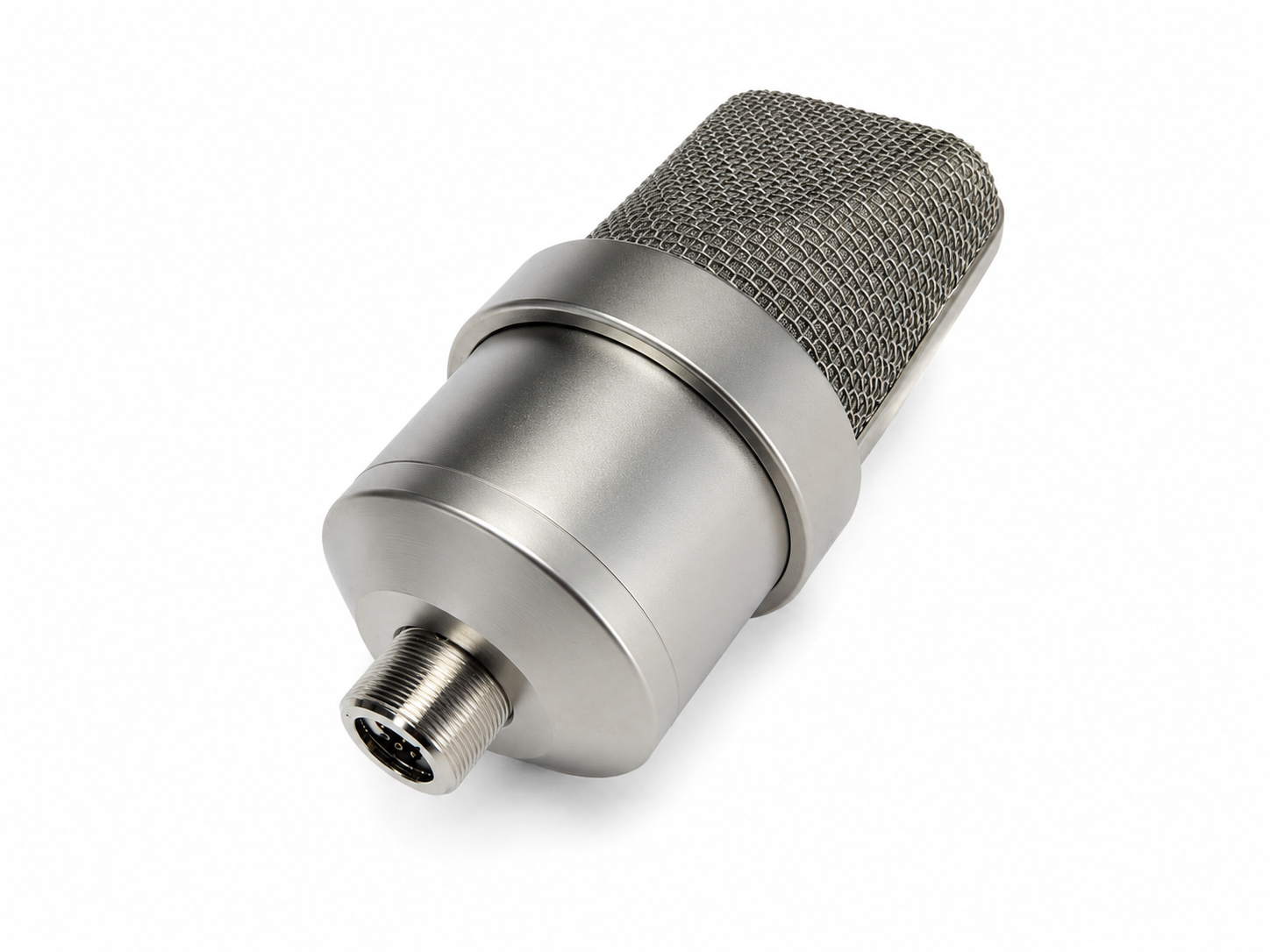

• Output Connector: Male XLR 7 pin proprietary – connects to powers supply with XLR 3pin output

What you Get:

• Ships in aluminum flight case with foam cutouts for all inclusions

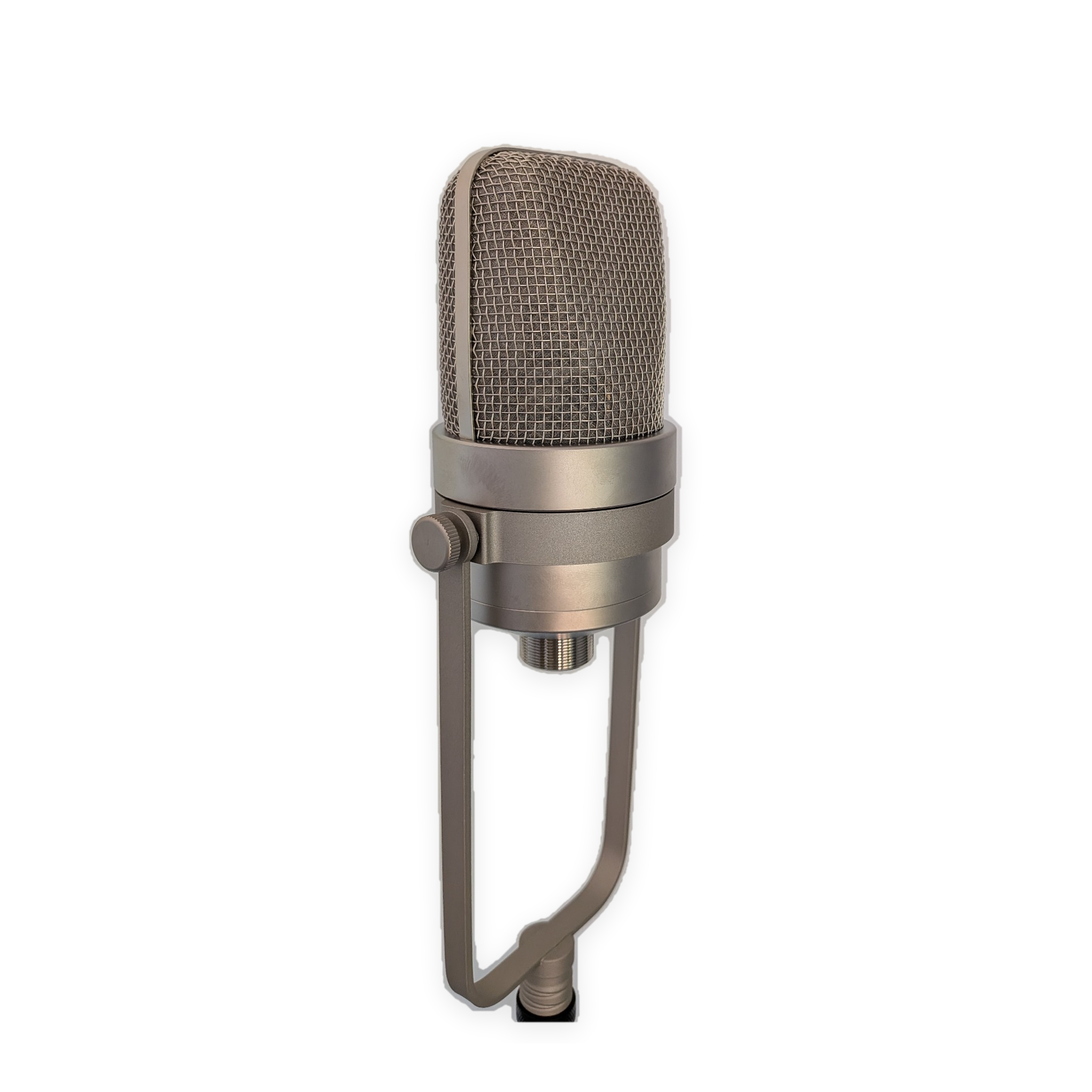

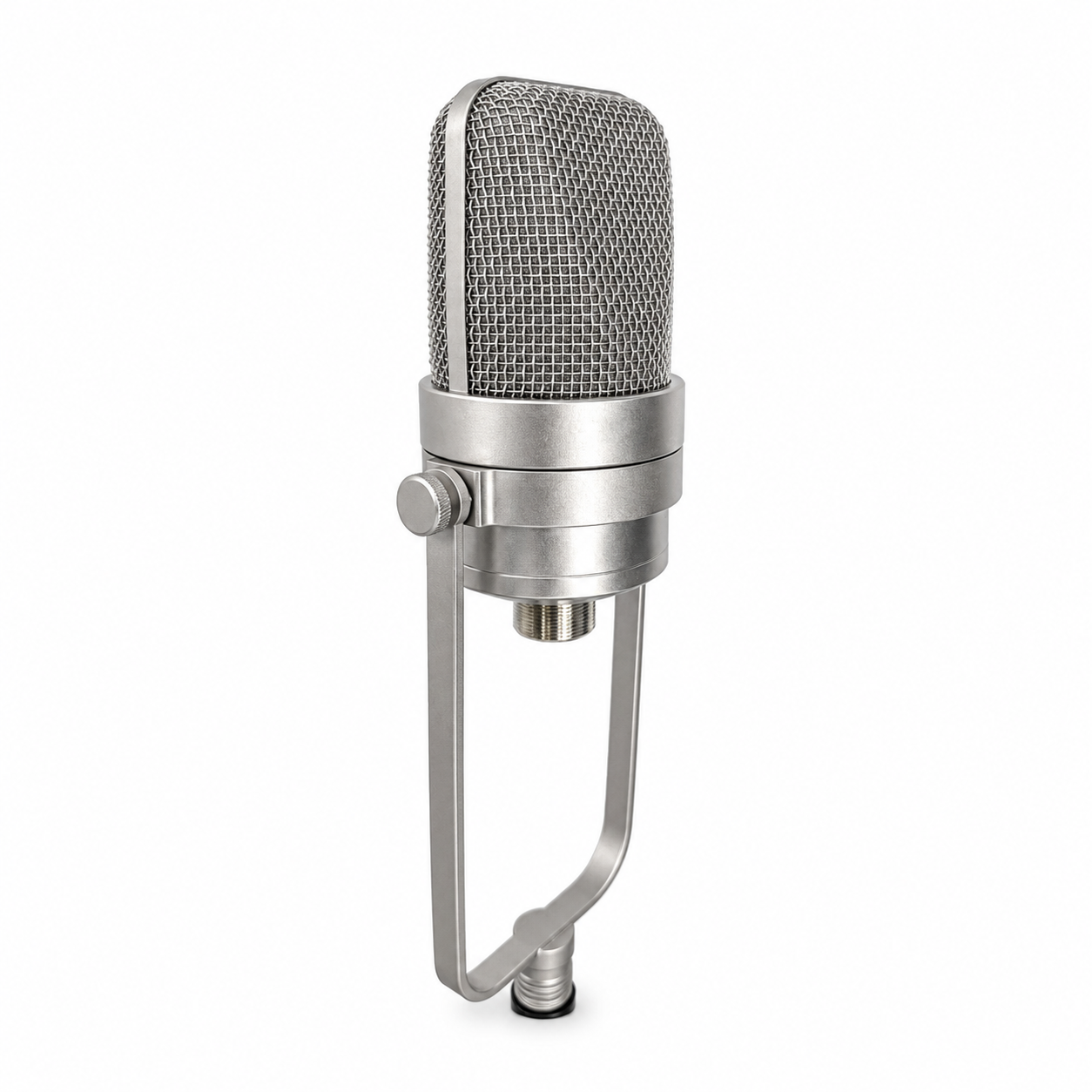

• Yolk style mount
• 10m 7pin XLR Cable (connects microphone to Power Supply Unit)
• 1m IEC power lead
• Power Supply Unit – this unit is where polar patterns are changed and audio from the mic is output as differentially balanced 3pin XLR
