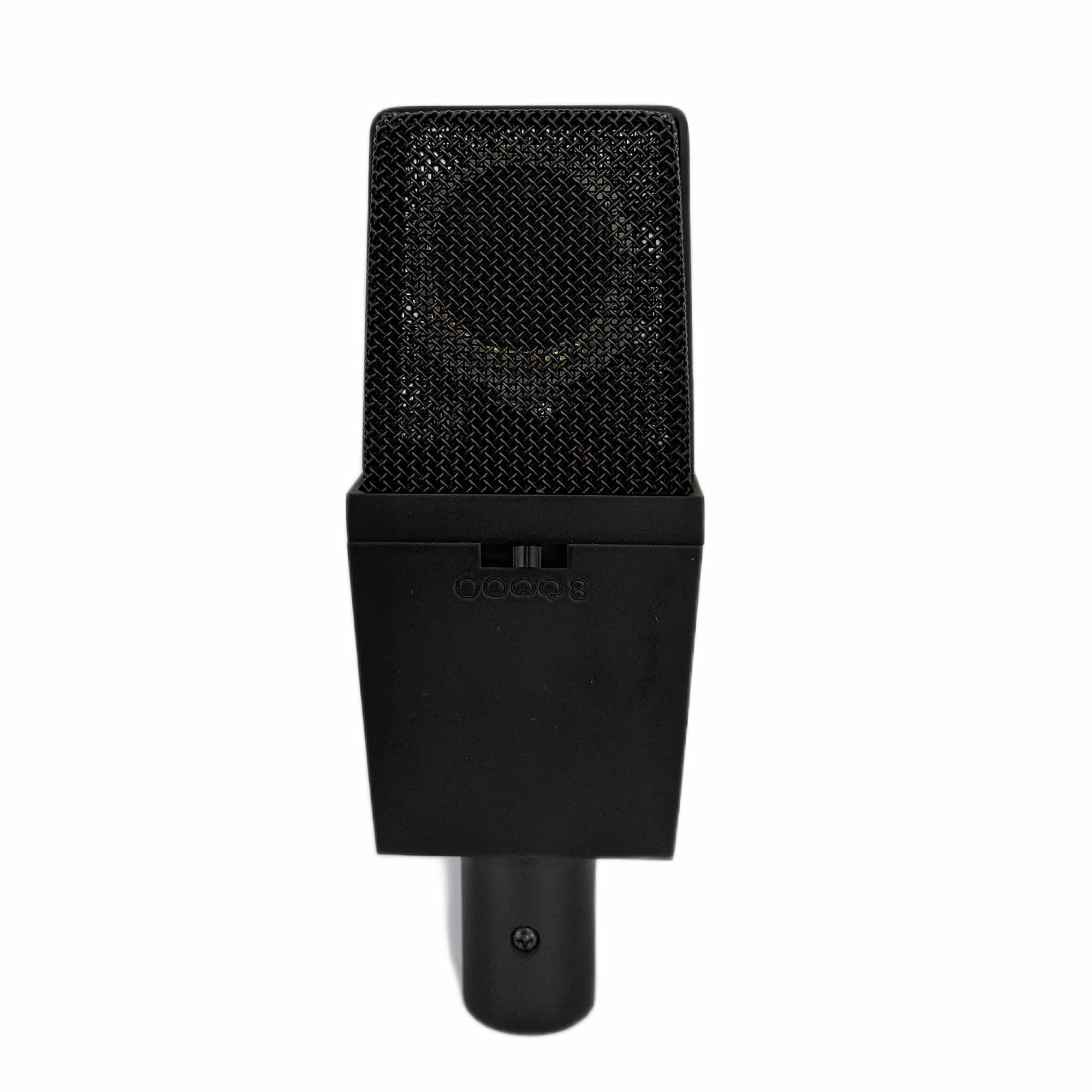

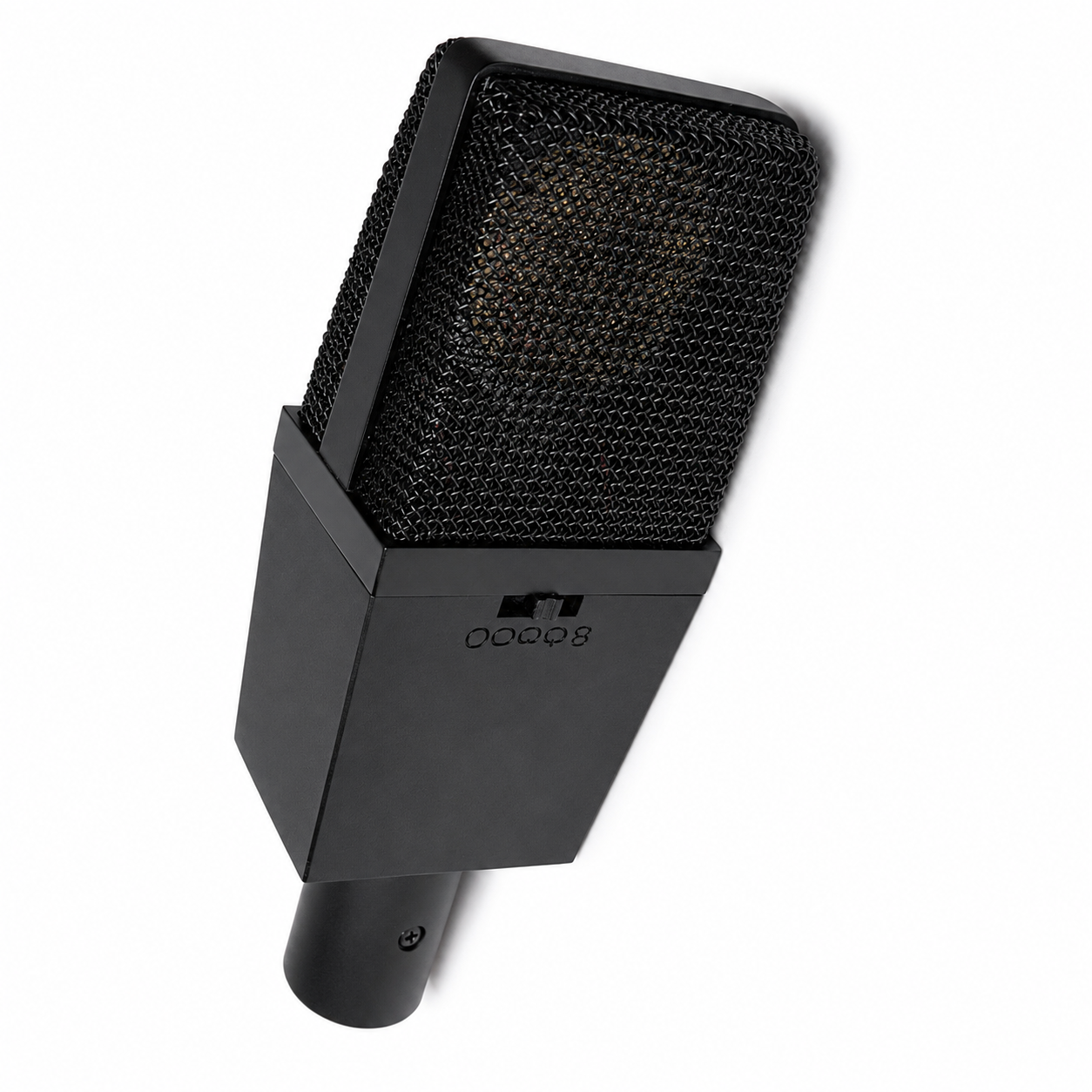

NUDE 414
NUDE 414 – We tip our hat to the Golden Era of condenser microphone design.
Our homage to AKG's halcyon period through the 1980s. The NUDE 414 channels the legendary EB/BULS lineage. At its heart lies a Class A discrete transformer coupled circuit driven by a dual diaphragm transducer design. Seamlessly select from five polar patterns. This microphone is built like a tank, feels weighty and satisfying to hold in the hand. Sonically, its oozing character in spades – that classic 80’s subtly darker lusciousness but alive & present through the high end. Designed for versatility, it's the ideal choice for capturing the intricate detail: Great choice for drums, guitars & amps, percussion or the resonant beauty of a grand piano. It ships in a sturdy flight case with a custom suspension mount.
The Numbers:
- Polar Pattern: 5 selectable Omni through figure 8
- Capsule: 34mm dual back-plate with 6-micron German mylar skinned dual diaphragm
- Frequency Response: 20Hz - 20kHz +/- 3dB
- Sensitivity: -38 dBu Ref. 1v/pa
- Output impedance: 200 Ohms @ 1K (nominal) transformer isolated
- Rated Load Impedance: >1500Ohms
- Maximum SPL: >140dB @ .5% THD @1000Hz
- ENL <14dBA
- S/N 80dB ref. 1Pa

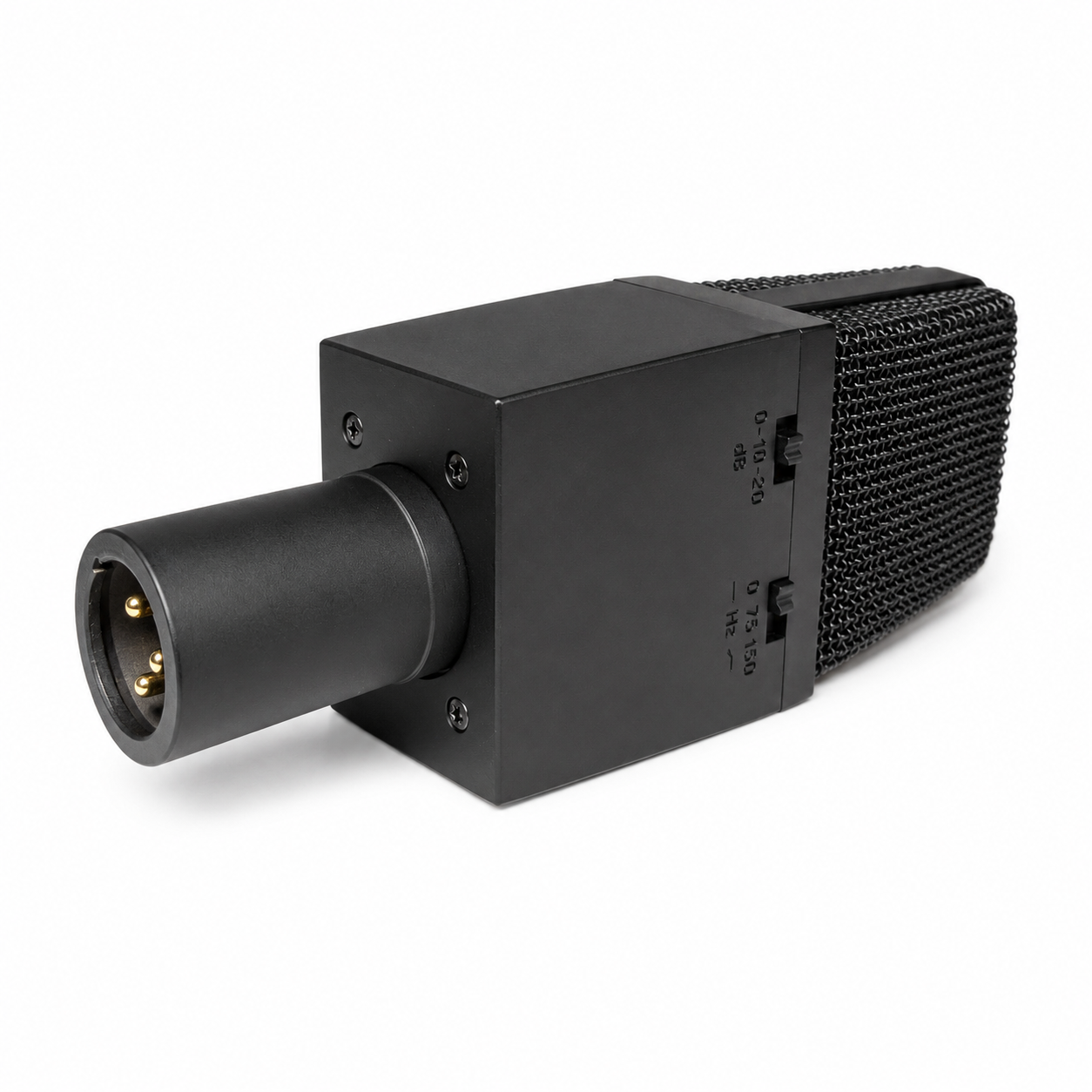

- Output Connector: XLR 3pin
- Supply Voltage: 48v Phantom

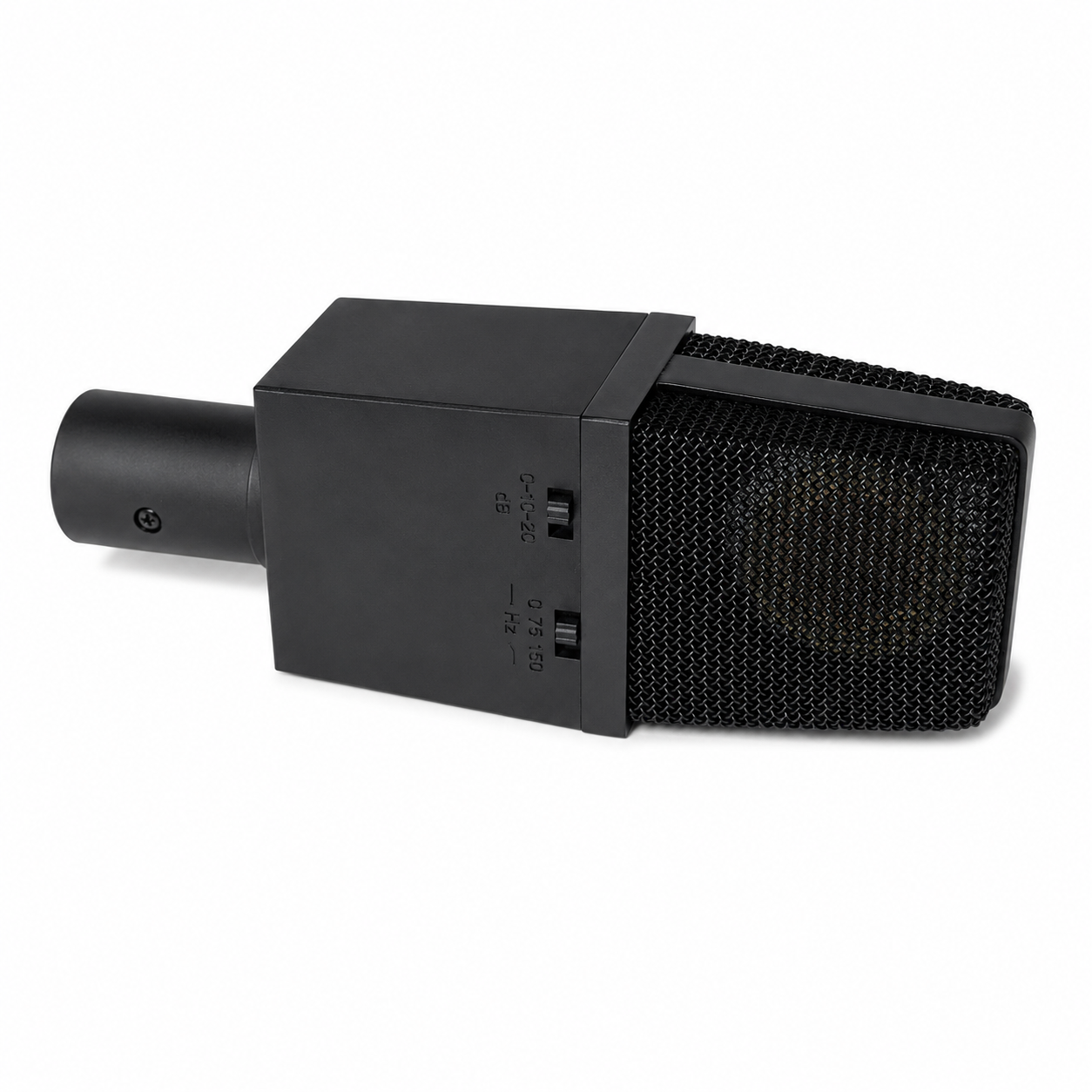

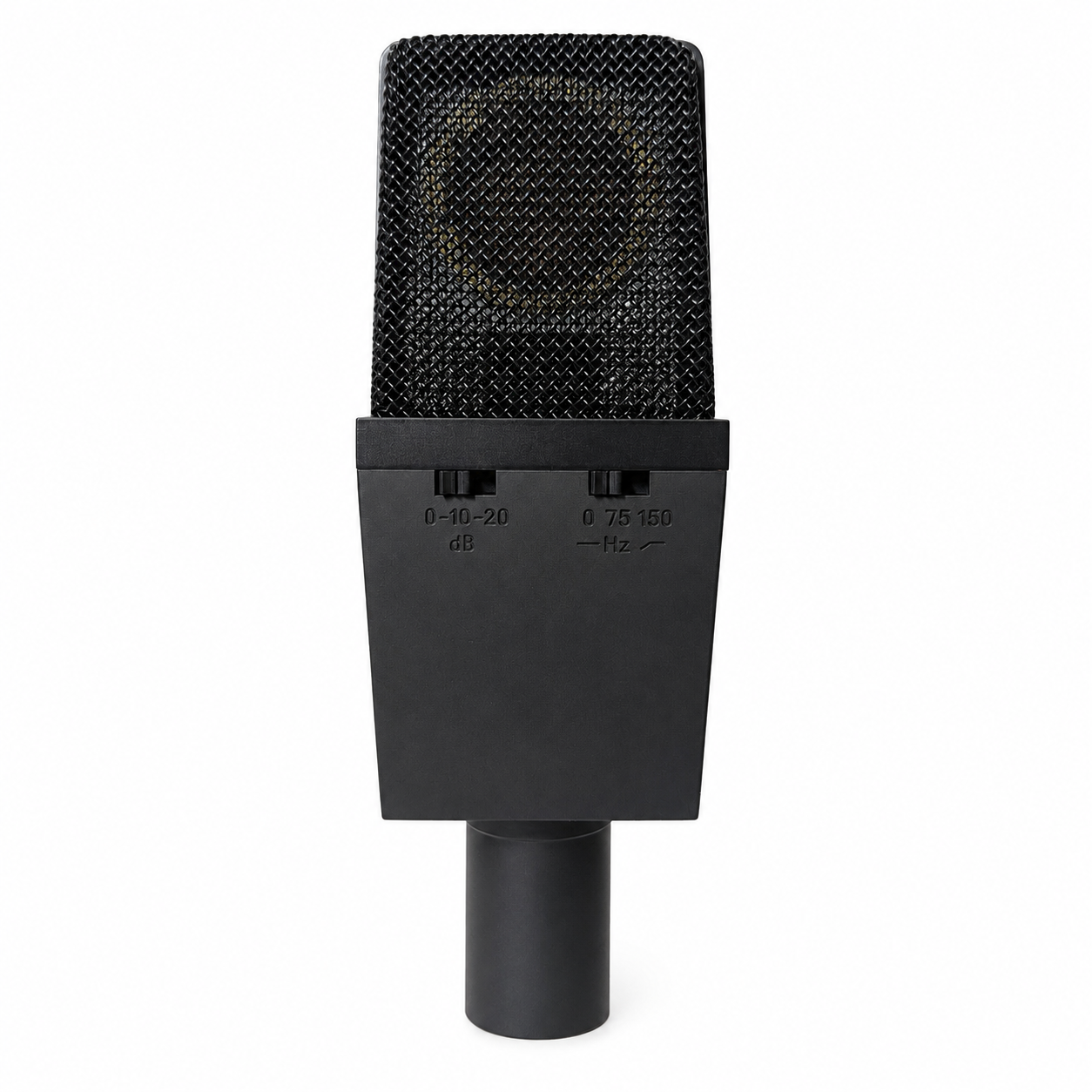

- Pre-attenuation Pad: selectable 10dB, 20dB
- High Pass Filter: selectable 75 or 150Hz
What you Get:
- Microphone ships in aluminum flight case with foam cutouts for all inclusions

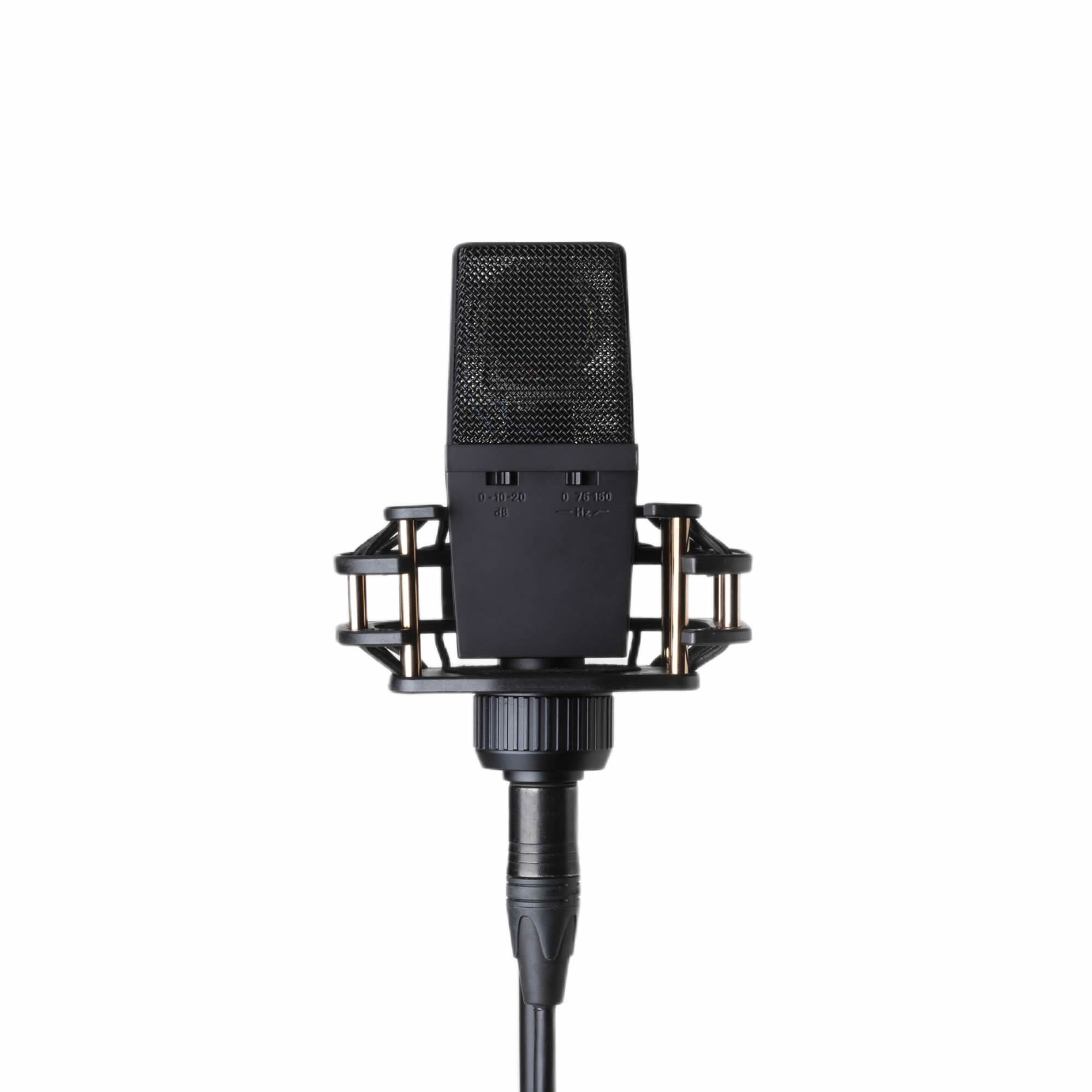

- Proprietary rectangular 414 suspension mount
